Key Considerations for Drilling Different Metals
Drilling performance is influenced not only by bit design but also by workpiece material characteristics. Factors like hardness and thermal conductivity significantly impact cutting efficiency and tool life.
Impact of Metal Hardness and Thermal Conductivity
Soft metals like aluminum (HV 50–100) enable fast, low-resistance drilling. Harder metals like carbon steel and stainless steel (HV 200+) increase tool wear and require greater cutting forces. Additionally, metals with low thermal conductivity like stainless steel cause heat buildup at the cutting edge, potentially leading to discoloration or thermal damage if not properly cooled.
Recommendations for Carbon Steel and Alloy Steel
For these medium-to-high hardness materials:
- Use cobalt steel (M35/M42) step drill bits for enhanced heat resistance
- Choose TiAlN or black oxide coatings to reduce wear
- Use tri-flat or hex shanks to prevent slippage
- Control feed rate and use coolant or mist lubrication to reduce jamming or bit failure risks
Step Drill Bits vs Traditional Twist Drills
Compared to traditional twist drills, step drill bits offer significant advantages in applications requiring multiple hole sizes, high efficiency, and minimal material deformation:
| Comparison Aspect | Step Drill Bit | Twist Drill |
|---|---|---|
| Hole Size Range | One bit supports multiple diameters | One bit per hole size |
| Thin Sheet Control | Clean exit, minimal burrs | Prone to tearing material edge |
| Suitable Materials | Thin metals, plastics, circuit boards | Thick metals, solid materials |
| Beginner Friendly | Easy positioning, reduced slippage | Requires skill for accurate start |

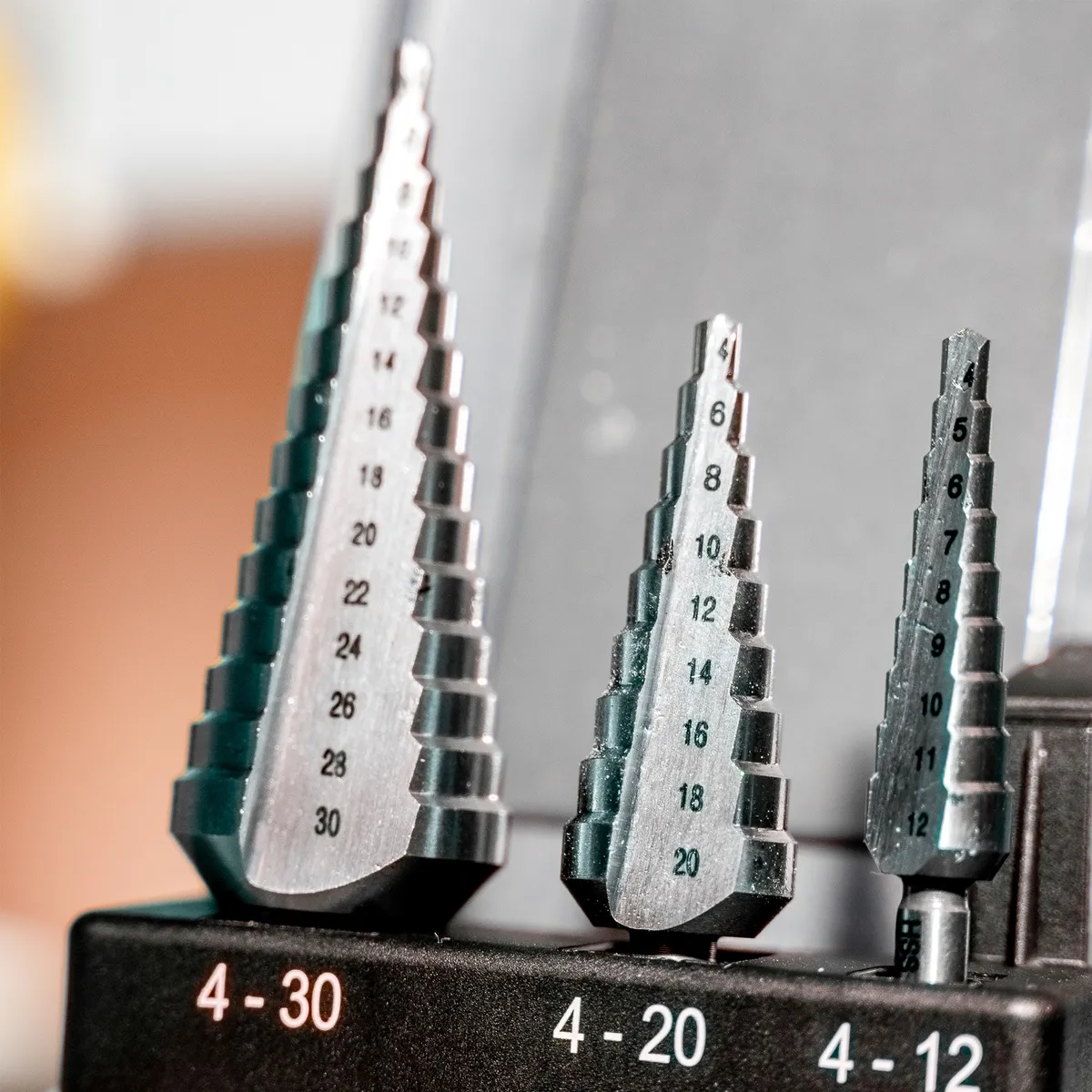

How to Choose the Best Step Drill for Metal
Material Selection: HSS, Cobalt Steel, Carbide
- HSS: Economical; suitable for soft metals
- Cobalt Steel (M35/M42): Best for high-hardness metals like steel and stainless steel
- Carbide: Ideal for CNC and automated production; brittle for handheld tools
Coating Technology: TiN, TiAlN, Black Oxide, Cobalt Coating
- TiN: Basic protection; suitable for general use
- TiAlN: High heat resistance; ideal for stainless steel and alloy steel
- Black Oxide: Enhanced chip evacuation and corrosion resistance
- Cobalt Coating: Reinforced surface strength; excellent for extended metal drilling
Equipment Compatibility: Hand Drill, Drill Press, CNC
- Hand Drill: Use hex/tri-flat shank to prevent slippage
- Drill Press: Provides stability; use with coolant for thick steel
- CNC: Use carbide step drills with optimized parameters for batch processing
Choosing Step Drills for Stainless Steel
Stainless steel is a high-strength, low thermal conductivity material. Drilling austenitic stainless steels (304 and 316) is particularly challenging due to work hardening, rapid heat buildup, and susceptibility to tool edge failure.
Recommended Materials and Coatings for 304/316 Stainless Steel
- Cobalt Alloy HSS (M35/M42): 5–8% cobalt content; higher heat resistance than standard HSS
- Black Oxide Coating: Enhanced corrosion resistance and lubrication
- TiAlN Coating: Excellent heat resistance and oxidation resistance
Machining Parameters: Speed, Feed, Lubrication, Cooling
- Recommended RPM: Low speed, high torque crucial; 300–600 RPM for handheld, 200–800 RPM for drill press/CNC
- Feed Pressure: Maintain steady, moderate downward pressure; avoid excessive force
- Lubrication: Strongly recommended—cutting oil or oil mist cooling significantly improves surface finish and tool life
Extending Tool Life in Metal Applications
Centering and Pre-drilling Techniques
- Use a center punch or center drill to prevent walking
- Maintain a perpendicular drilling angle, especially for handheld drills
- Consider pilot holes for thick or hard plates before switching to step drill
Lubrication and Cooling Techniques
- Oil mist or cutting fluid systems: Ideal for CNC and drill presses
- Manual drip lubrication: Use cutting oil (e.g., WD-40) for handheld drills
- Avoid dry drilling unless using heat-resistant coated bits
Common Mistakes to Avoid
- High-speed dry drilling: Causes overheating and edge damage
- Excessive feed or pressure: Results in jamming and tool breakage
- Loose chuck or spindle runout: Leads to wobbling and off-center holes
Common Use Cases and Applications
Sheet Metal Drilling: Single-Tool Multi-Size Advantage
Perfect for electrical boxes, control panels, ventilation holes, and wiring ports:
- One bit accommodates multiple diameters for efficient drilling
- Clean edges with proper step geometry minimize burrs
- Matched standard hole sizes compatible with common fasteners and grommets
Manual vs CNC Applications
Manual Use: Suitable for field work or small batch production
CNC Use: High precision, automated positioning; ideal for batch stainless steel drilling with carbide step drill bits
Quick Selection Guide
| Metal Type | Recommended Material | Surface Coating | Cooling Method | Usage Tips |
|---|---|---|---|---|
| Aluminum/Copper | HSS | TiN/Black Oxide | Dry or light lube | Medium-low speed, portable drills |
| Carbon Steel | Cobalt (M35) | TiAlN/Black Oxide | Cutting oil/mist | Low speed + constant feed |
| Stainless Steel | Cobalt (M35/M42) | TiAlN/Multi-layer | Oil/heavy lube | CNC or drill press; never dry drill |
| Galvanized Sheet | HSS/Cobalt | Black Oxide | Manual oil lube | Use center punch for precision |
