Coating Removal Systems
Start with the grinder platform, then lock the mounting interface, rotation direction, PCD layout and protection segment against the coating-removal job.
Five representative configurations cover hand-held cup wheels, PCD-only and split-PCD Redi Lock shoes, and 3-M6 bolt-on protection-bar shoes. Start with the machine, then choose the cutter layout.

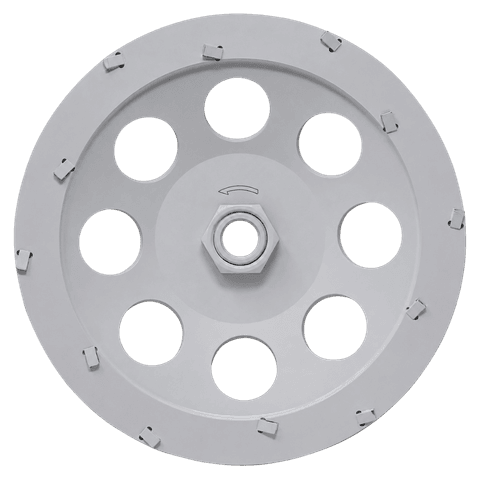

A high-density 12-tooth cup wheel for portable removal at edges and confined areas where a planetary floor grinder cannot reach. The integrated flange and eight ventilation openings keep the assembly compact and stable.

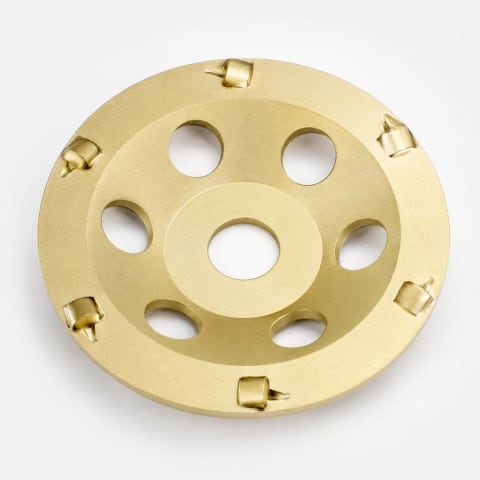

A six-point directional PCD layout for hand-held coating removal where cutter direction, grinder rotation and guard clearance are confirmed together before sampling.

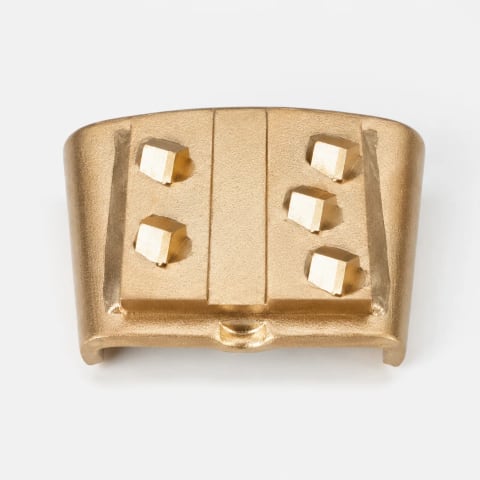

A quick-change PCD-only layout for aggressive coating engagement. Cutter count, working direction and tools per head are matched to the Redi Lock holder before sample approval.

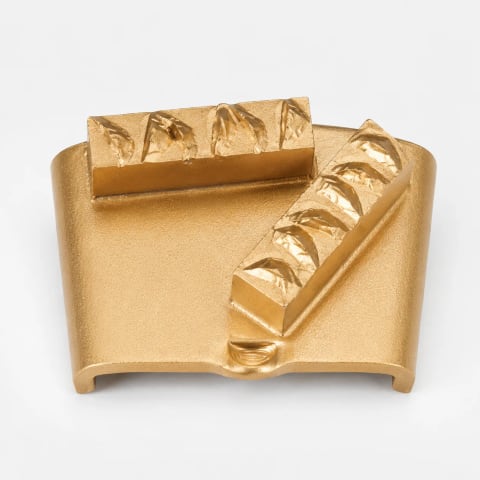

Split-PCD bars distribute contact across a longer working edge. We match the split layout, direction and holder to the coating and required surface condition during sample approval.

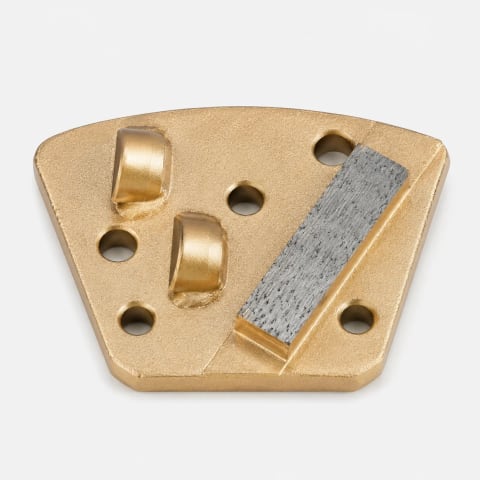

A heavy trapezoid steel plate with three M6 mounting positions, two quarter-round PCD cutters and one protection bar. Hole pattern, adapter plate and rotation are aligned to the grinder model rather than assumed universal.
Grinder brand, model and holder plate
Mounting interface or bolt-hole drawing
Rotation direction and tools per head
Coating type, thickness and floor substrate
Dry/wet mode, dust extraction and machine power
Sample acceptance, marking, packaging and annual volume
