Internal concrete drilling test

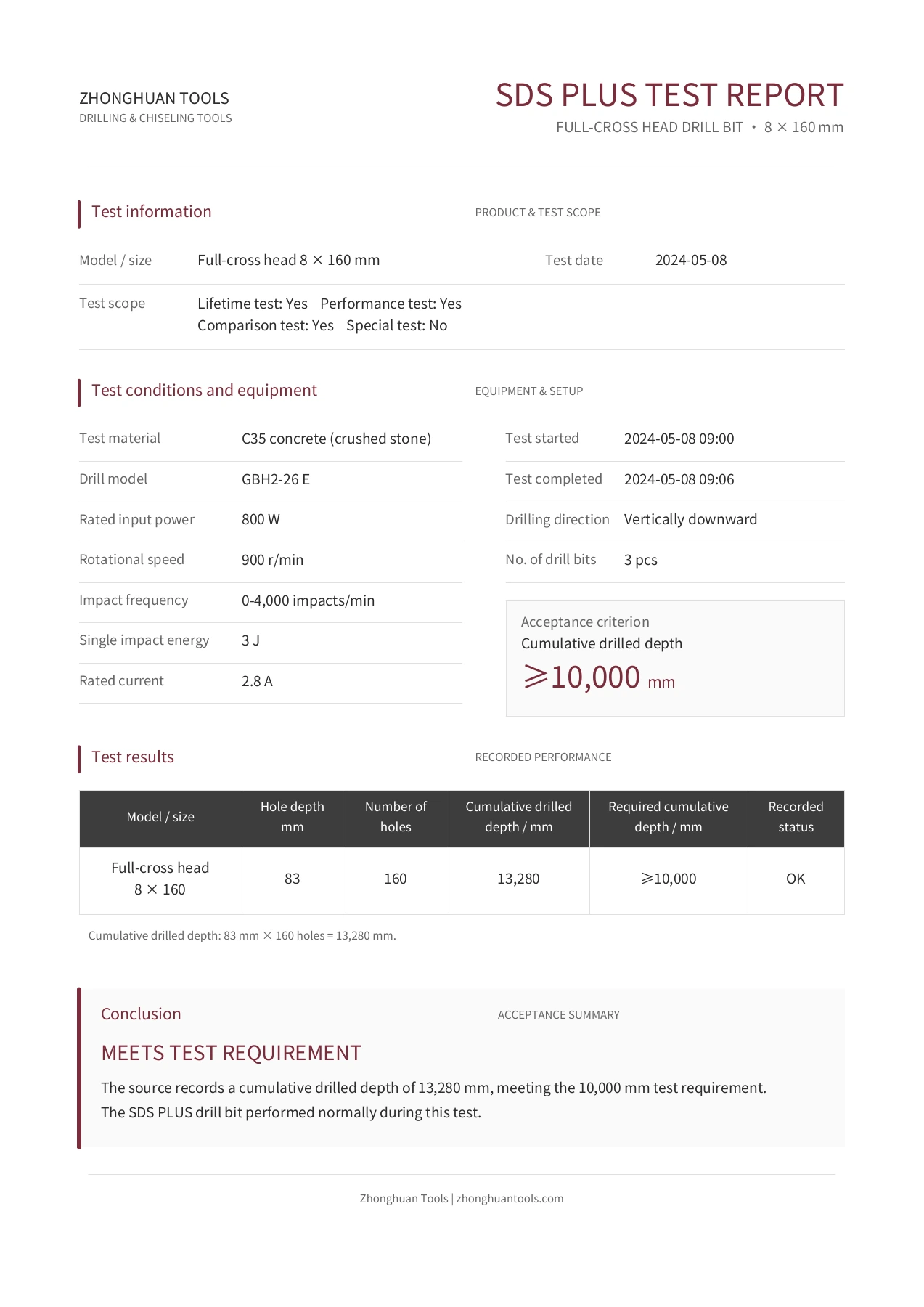

SDS-Plus Full Carbide Head 8 × 160 mm: C35 Concrete Test Report
We test our full-carbide-head SDS-Plus bits against defined drilling acceptance targets. This report documents the 8 × 160 mm construction in C35 crushed-stone concrete with a GBH2-26 E rotary hammer.
160 holes · 13,280 mm cumulative drilling · 10,000 mm acceptance target met
Test conditions and equipment
- Product / size
- SDS-Plus Full Carbide Head 8 × 160 mm
- Test material
- C35 concrete (crushed stone)
- Rotary hammer
- GBH2-26 E
- Test date
- 2024-05-08
- Samples listed in the report
- 3 drill bits
- Drilling direction
- Vertically downward
- Rated input power
- 800 W
- Rotational speed
- 900 r/min
- Impact frequency
- 0-4,000 impacts/min
- Single impact energy
- 3 J
- Rated current
- 2.8 A
- Test started
- 2024-05-08 09:00
- Test completed
- 2024-05-08 09:06
Recorded drilling results
- Hole depth
- 83 mm
- Number of holes
- 160
- Cumulative drilled depth
- 13,280 mm
- Acceptance target
- ≥10,000 mm
- Recorded status
- OK · Meets test requirement
83 mm × 160 = 13,280 mm
The result covers the report's C35 concrete setup and listed samples. For your OEM program, send the target substrate, hammer platform, diameter and working depth so we can arrange a matching sample evaluation.
