Coating Removal Systems
Start with the grinder platform, then lock the mounting interface, rotation direction, PCD layout and protection segment against the coating-removal job.
Choose the correct cutting family
Epoxy, glue, paint, resin and mastic
Bare concrete, levelling, aggregate exposure and polishing preparation
Eight photographed configurations cover hand-held cup wheels, three Redi Lock cutting layouts and two bolt-on trapezoid constructions. Additional HTC/EZ, Lavina, Blastrac and Scanmaskin interfaces are drawing-matched through the OEM matrix below.

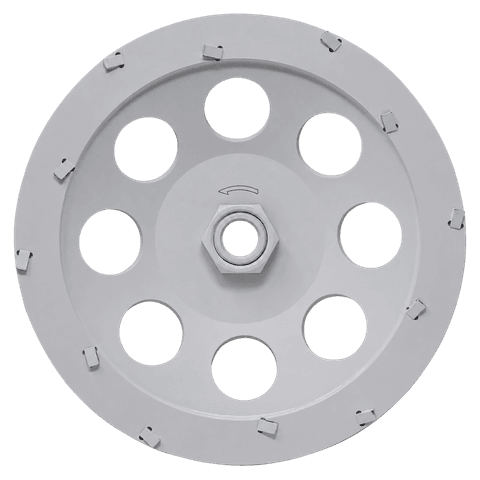

A high-density 12-tooth cup wheel for portable removal at edges and confined areas where a planetary floor grinder cannot reach. The integrated flange and eight ventilation openings keep the assembly compact and stable.

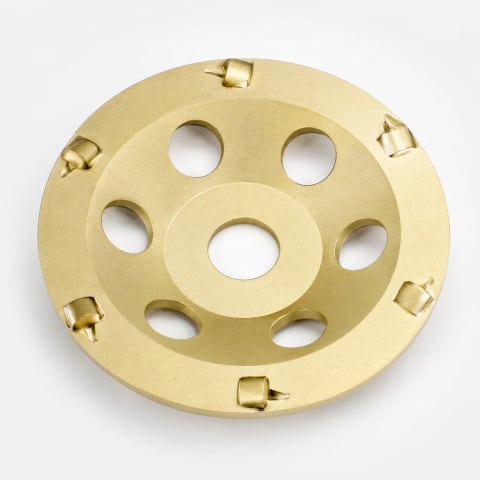

A six-point directional PCD layout for hand-held coating removal where cutter direction, grinder rotation and guard clearance are confirmed together before sampling.

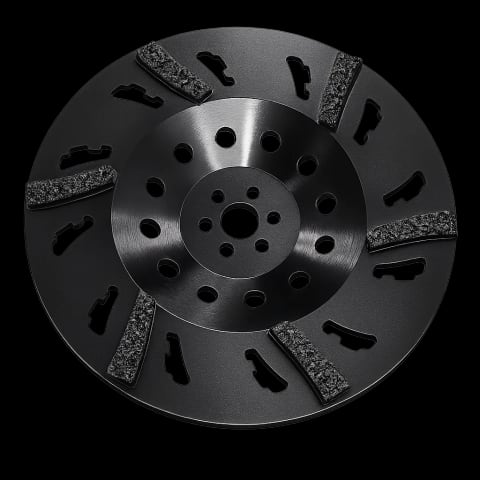

A crushed-PCD matrix cup wheel for thin, high-tack coatings — mastic, pressure-sensitive adhesive, thin polyurethane — where a solid PCD block bites too deep and glue-loaded debris clogs a standard tooth. The crushed matrix shears in small increments instead of gouging, and the bolt-on flange hub is matched to the grinder spindle rather than a threaded arbor.

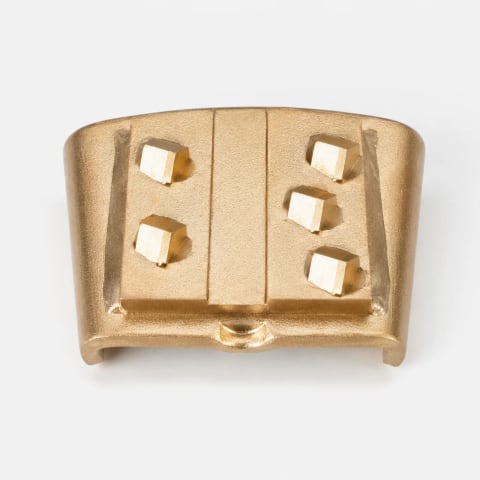

A quick-change PCD-only layout for aggressive coating engagement. Cutter count, working direction and tools per head are matched to the Redi Lock holder before sample approval.

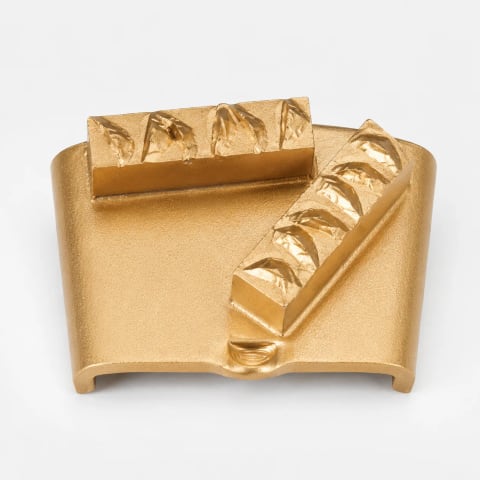

Split-PCD bars distribute contact across a longer working edge. We match the split layout, direction and holder to the coating and required surface condition during sample approval.
Two quarter-round PCD cutters open the coating while a trailing protection segment moderates penetration and supports a more controlled surface. The segment specification is matched to the coating and permitted substrate marking.

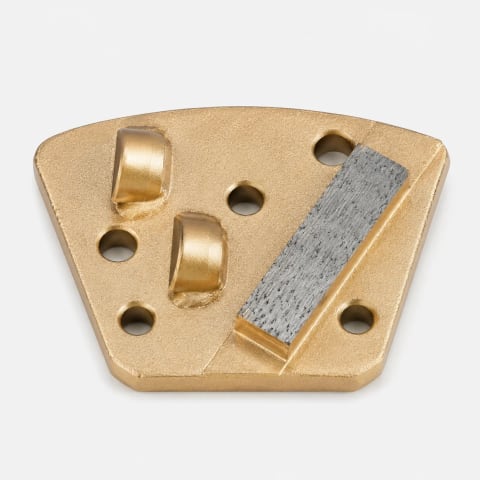

A heavy trapezoid steel plate with three M6 mounting positions, two quarter-round PCD cutters and one protection bar. Hole pattern, adapter plate and rotation are aligned to the grinder model rather than assumed universal.

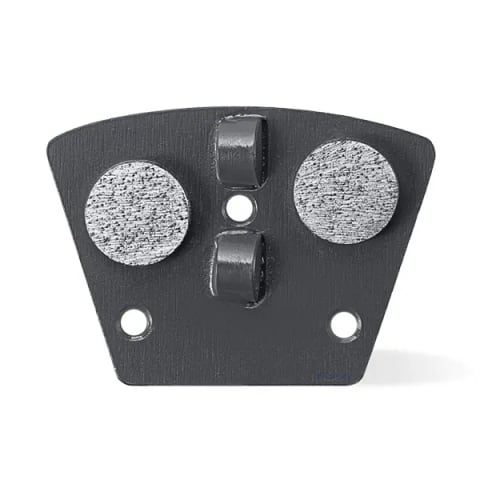

Two quarter-round PCD cutters shear the coating while two round metal-bond buttons share the load, moderate gouging and support a more controlled surface profile. The three-hole trapezoid plate and working direction are matched to the grinder drawing.
OEM interface coverage
The public systems show the approved cutter architectures. The holder body is then released against the grinder model, rotation and an interface drawing or sample.
M14 · 5/8"-11 · 22.23 mm
Quick-change · LH / RH
3-M6 · 3-hole · custom centres
Holder sample or drawing
Generation + holder profile
Slide-on / plate matched
Model-specific holder
Grinder brand, model and holder plate
Mounting interface or bolt-hole drawing
Rotation direction and tools per head
Coating type, thickness and floor substrate
Dry/wet mode, dust extraction and machine power
Sample acceptance, marking, packaging and annual volume
