A search for a “Diablo hollow drill bit with a solid carbide head” leads to the AMPED Rebar Demon dust-extraction system. The important combination is a durable cutting head and a managed dust-removal path. At Zhonghuan, we examine these separately so buyers can specify the complete drilling assembly rather than select on the word “hollow” alone.
What the AMPED system includes

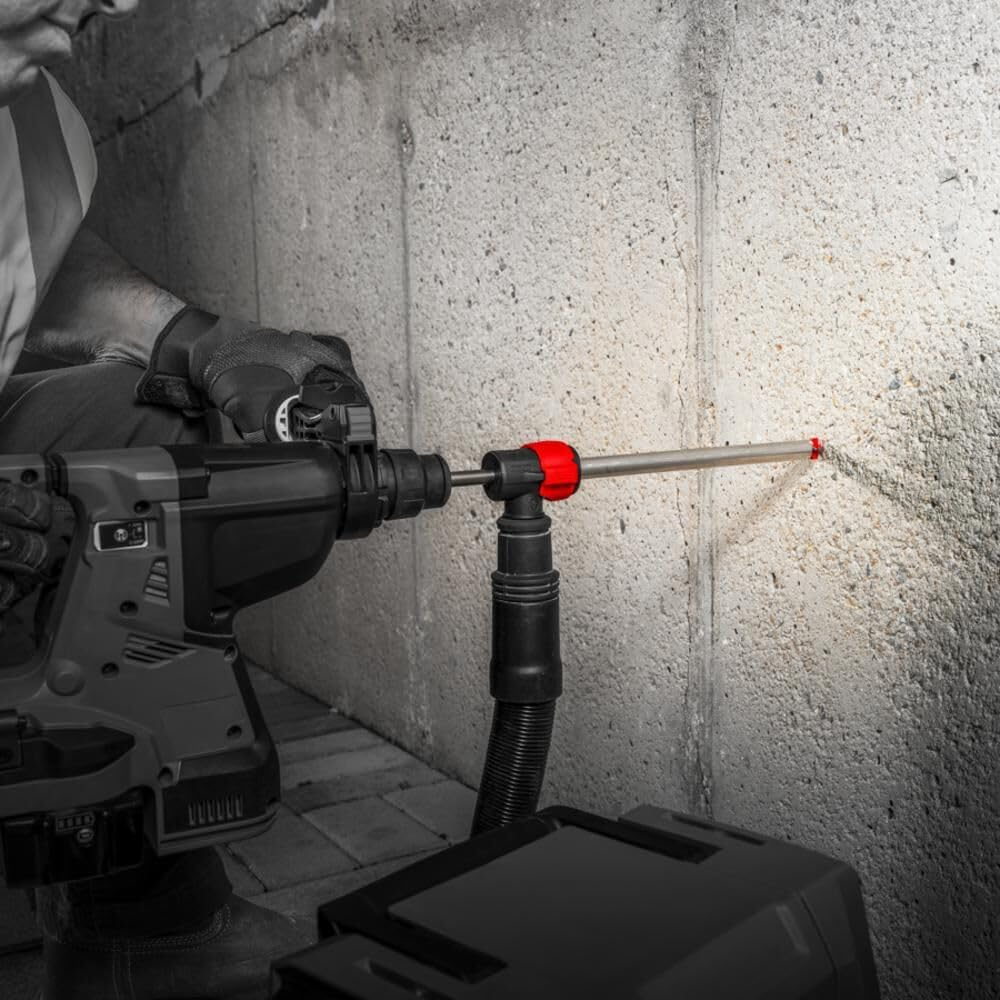

Diablo describes AMPED as a dust-extraction system using a steel dust sleeve and a reusable Snap-Lock adapter. The assembly connects the drilling tool to an extractor, combining hole production with dust collection. The full-carbide cutting head, sleeve, adapter, hose and extractor have different functions; a bit alone is not the complete system.
For product identification, use the manufacturer’s model page and package contents. The DMAPLA4420-S6 listing supplied for this review is a kit reference, not a generic specification for every AMPED bit. Seller-location fields, mixed dimensions and marketplace material labels should not be used to infer manufacturing origin or internal construction.
Is it a conventional hollow drill bit?
“Hollow” describes a passage used for extraction; “full-carbide head” describes the cutting component. They can coexist. However, the smooth tube visible around an AMPED bit should not automatically be described as a deep-bored, hollow steel drill shaft. Diablo explicitly identifies a dust-sleeve system.
From the supplied close-up, an opening is visible beside the carbide head and the surrounding sleeve. We interpret this as part of the extraction arrangement, not proof of a through-hole inside the carbide or of a specific hidden shaft construction. For sourcing, ask for the airflow route, removable parts and cleaning instructions rather than relying on a silhouette.
| Configuration | Dust path | Cutting head |
|---|---|---|
| Conventional fluted SDS bit | Debris moves along exposed flutes; separate extraction may be used | Can be carbide-tipped or full-carbide |
| Conventional hollow extraction bit | Head openings connect to a passage inside the drill body | Confirm the specific head construction |
| Diablo AMPED sleeve system | Dust sleeve and Snap-Lock connect the bit assembly to an extractor | Diablo specifies a four-cutter full-carbide head |
What the four-cutter full-carbide head contributes
Diablo identifies the cutting component as an impact-resistant four-cutter full-carbide head and markets its head connection as Tri-Metal Fusion Welding. These are Diablo product descriptions. They do not establish that another manufacturer uses the same joining process.
The head engages concrete, aggregate and reinforcement; the extraction system manages debris. A full-carbide head does not make the whole drill solid carbide, and an extraction passage does not prevent the cutting head from being a one-piece carbide component. As with monobloc terminology, construction and joining should be specified separately.
Diablo Tools · AMPED Rebar Demon · 2024
SDS-Plus and SDS-Max: check the actual configuration

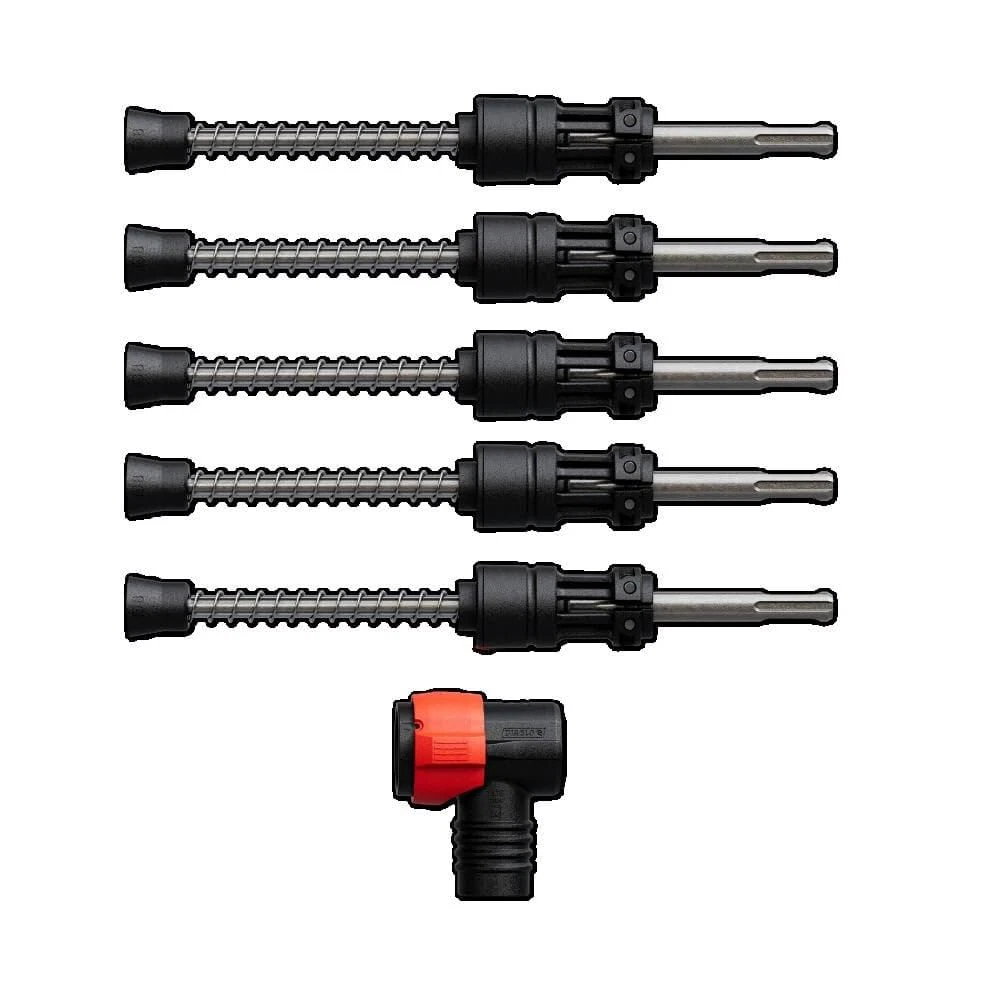

Diablo’s current campaign separates an anchoring range offered on SDS-Plus and SDS-Max from small SDS-Plus products aimed at interior and overhead installation. The supplied images likewise show both a smooth sleeve arrangement and a small-bit dust-cap configuration. Do not classify these solely as “Plus versus Max”; the precise diameter and model matter.
Confirm cutting diameter, usable drilling depth and overall length as three separate dimensions. For the submitted 3/8 × 4 × 9 inch reference, those numbers describe different aspects of the tool; the overall length is not the available anchoring depth. Confirm the package contents as well: a bit-only item and a kit with an adapter are different purchase units.
Snap-Lock adapters and the vacuum connection
The Snap-Lock is the dust-extraction connection, not an SDS shank converter. Select the correct SDS-Plus or SDS-Max adapter version and the matching bit assembly. A connection that fits the vacuum hose does not change which rotary hammer can accept the shank.
Diablo’s adapter chart specifies a 1-inch outside-diameter dust port mating with a hose attachment having a 1-inch inside diameter. Check the actual cuff or reducer, not just the nominal hose size. Airflow, filtration, hose condition, seals and blockages remain part of system selection and operation.
What Drill-to-Fill means for anchor preparation
Drill-to-Fill describes a workflow intended to reduce separate hole-cleaning operations by extracting debris while drilling. The commercial value is the time to an accepted anchor hole, including drilling, cleaning, bit changes and interruptions—not penetration speed alone.
Before omitting blow-brush-blow, confirm that the anchor manufacturer’s current instructions accept the exact drilling and extraction arrangement for the adhesive or anchor, diameter, depth and substrate. A general clean-hole claim is not permission to omit cleaning for every anchor system. Follow the project’s approved plan when drilling through structural reinforcement.
How to read the performance claims
Diablo publishes “up to” claims including 97% dust extraction, faster hole preparation and longer life against specified conventional or two-cutter baselines. These should be read as manufacturer claims with a defined comparison, not as measured results from Zhonghuan or a guarantee for every site.
Dust capture percentage is not the same as zero airborne dust, and preparation-time savings are not the same as a multiplication of instantaneous drilling speed. For a purchasing trial, record the whole drilling-and-preparation cycle and the condition of the completed hole. Keep machine, material, diameter, depth and extraction setup comparable.
What professional buyers should specify
Our procurement view is to specify the assembly: substrate and reinforcement, rotary hammer, diameter, required working depth, cutting-head construction, extraction route, adapter, hose interface and service parts. For chemical anchors, include the accepted installation method. This turns a product photo into a useful engineering brief.
The source images are Diablo reference products, not Zhonghuan-manufactured examples. For a Zhonghuan drilling programme, send your application and quantities so we can review the suitable product configuration and sample scope. Confirm any dust-extraction requirement explicitly rather than assuming that a conventional full-carbide bit includes it.
